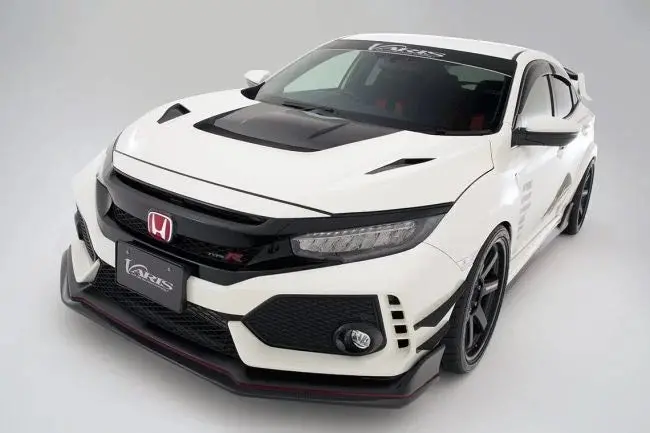

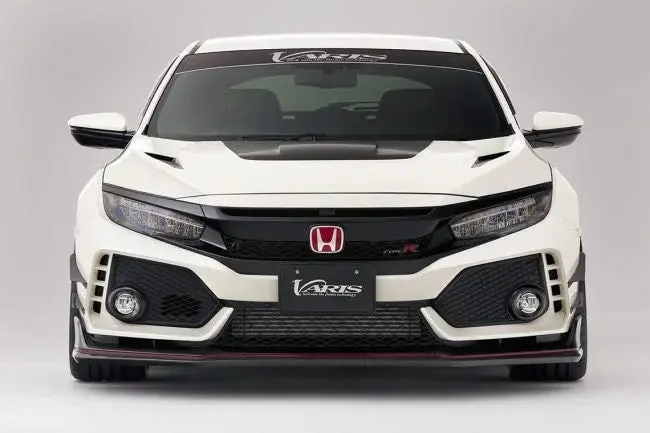

Varis Arising-I Carbon Fiber Cooling Hood – FK8 Honda Civic Type R (2017–2021)

Description

In circuit driving, the FK8 typically faces severe heat damage under normal conditions. Simply enlarging the radiator or adding a design-oriented ducted bonnet fails to lower the water temperature effectively. Consequently, VARIS initiated the development of a cooling bonnet using their accumulated expertise to enhance cooling efficiency. In tests on the track, this cooling bonnet achieved a reduction in water temperature by 5°C compared to the standard setup. Recognizing potential for further improvements, VARIS also began developing a new bumper. The simultaneous installation of both the Varis Front Bumper and the bonnet resulted in a substantial decrease in water temperature, ranging from 10 to 15°C.

Engineering:

• An ideally shaped outlet duct is strategically positioned to enhance heat dissipation from the radiator core. Air enters via the NACA ducts on both sides and is expelled through the outlet duct at the base of the A-pillar, facilitating the removal of hot air from the engine compartment and improving cooling efficiency. The installation of the duct has also led to a redesign of the inner rib layout, which has increased its strength.

Features

• Lightweight construction reduces weight
• Additional vents and large heat extraction duct improves cooling
• Functional NACA ducts
• Aggressive track-inspired styling
• Available in VSDC (Varis special dry carbon), carbon and FRP
• Optional Hood Side Ducts
• Includes rain cover and metal mesh

Fitment:

Honda Civic Type R: FK8 (2017-2021)
