Description
Designed for a factory-fit look, OE style switches deliver exceptional performance while maintaining a classic aesthetic. Proudly made in the USA, these switches feature aluminum tops that can be finished in chrome, polish, anodize, powder coat, cerakote, paint, raw, blasted, or brushed to suit any project.

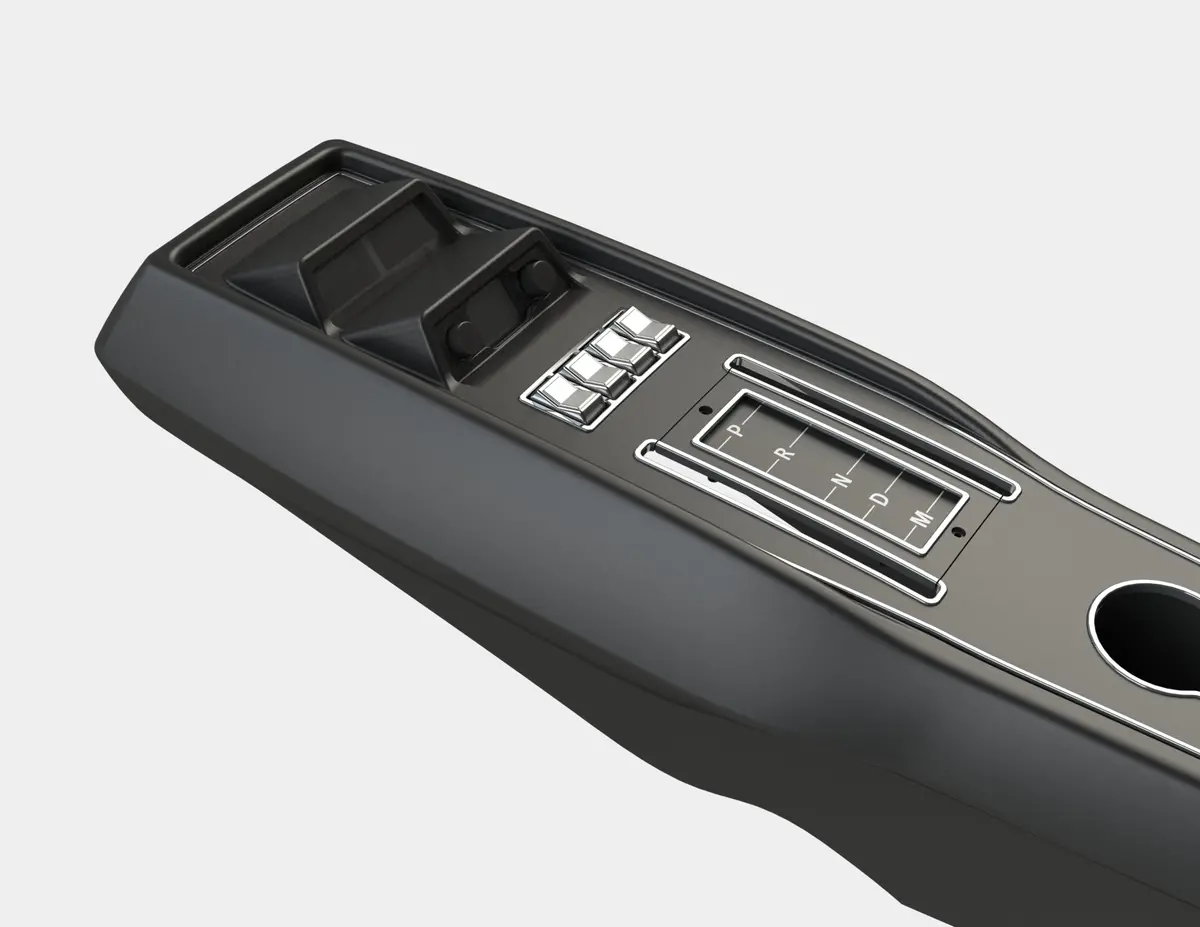

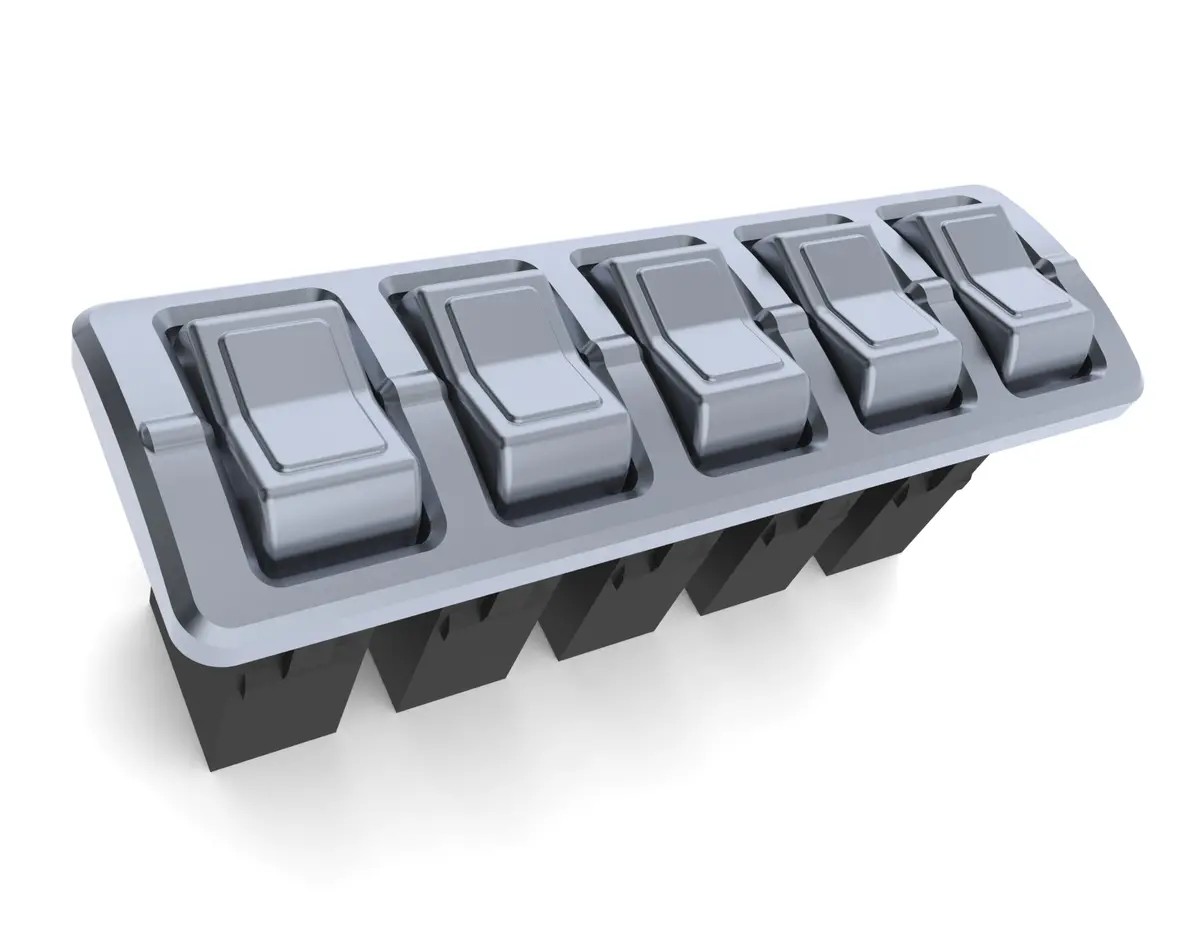

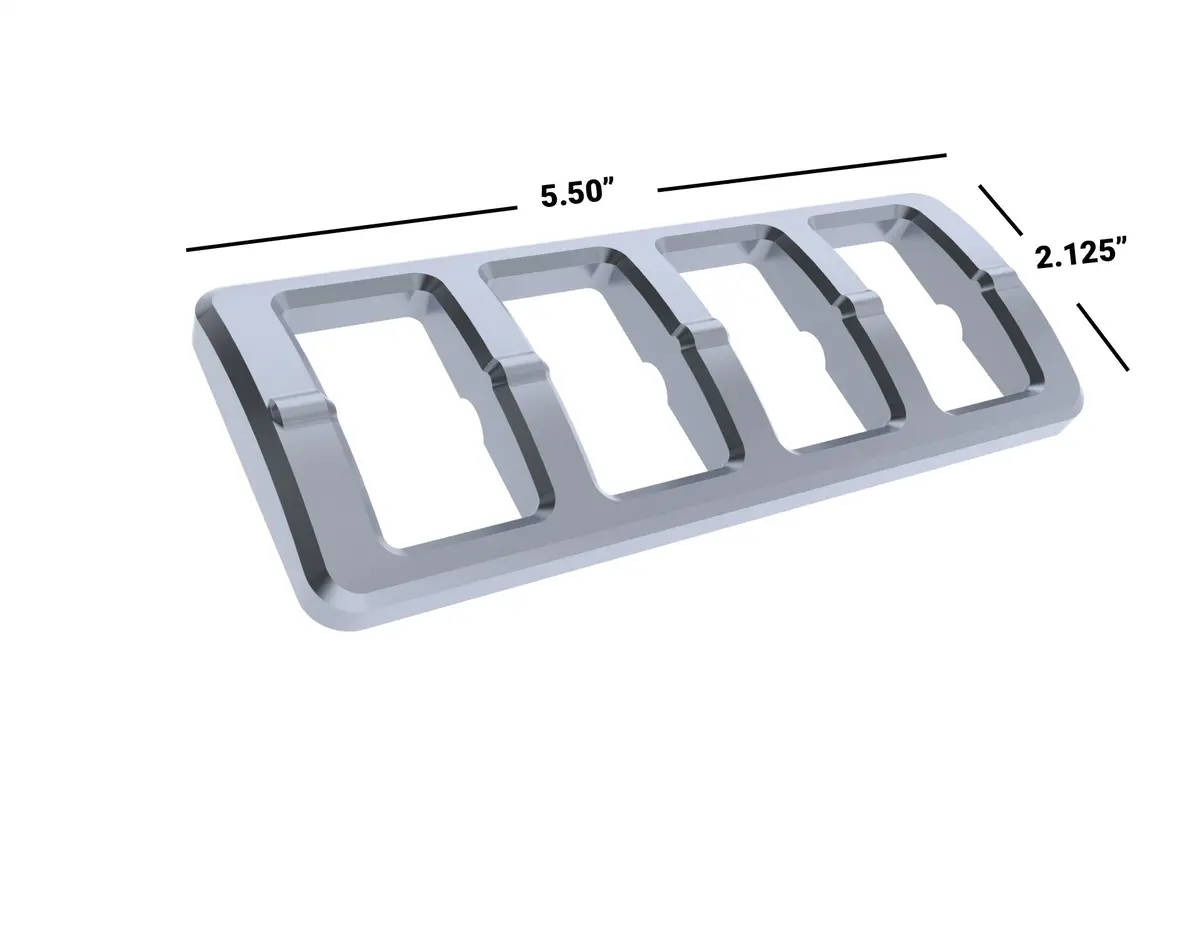

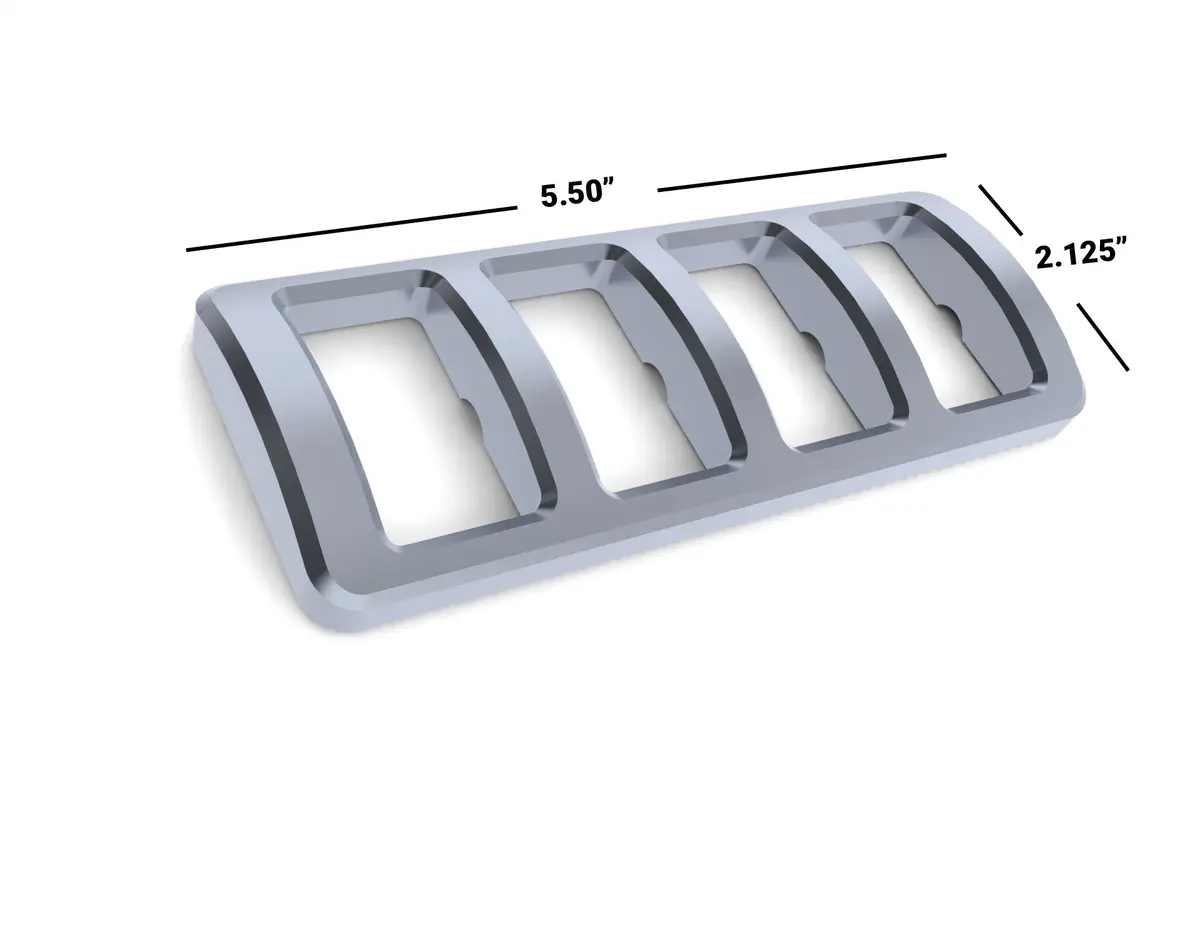

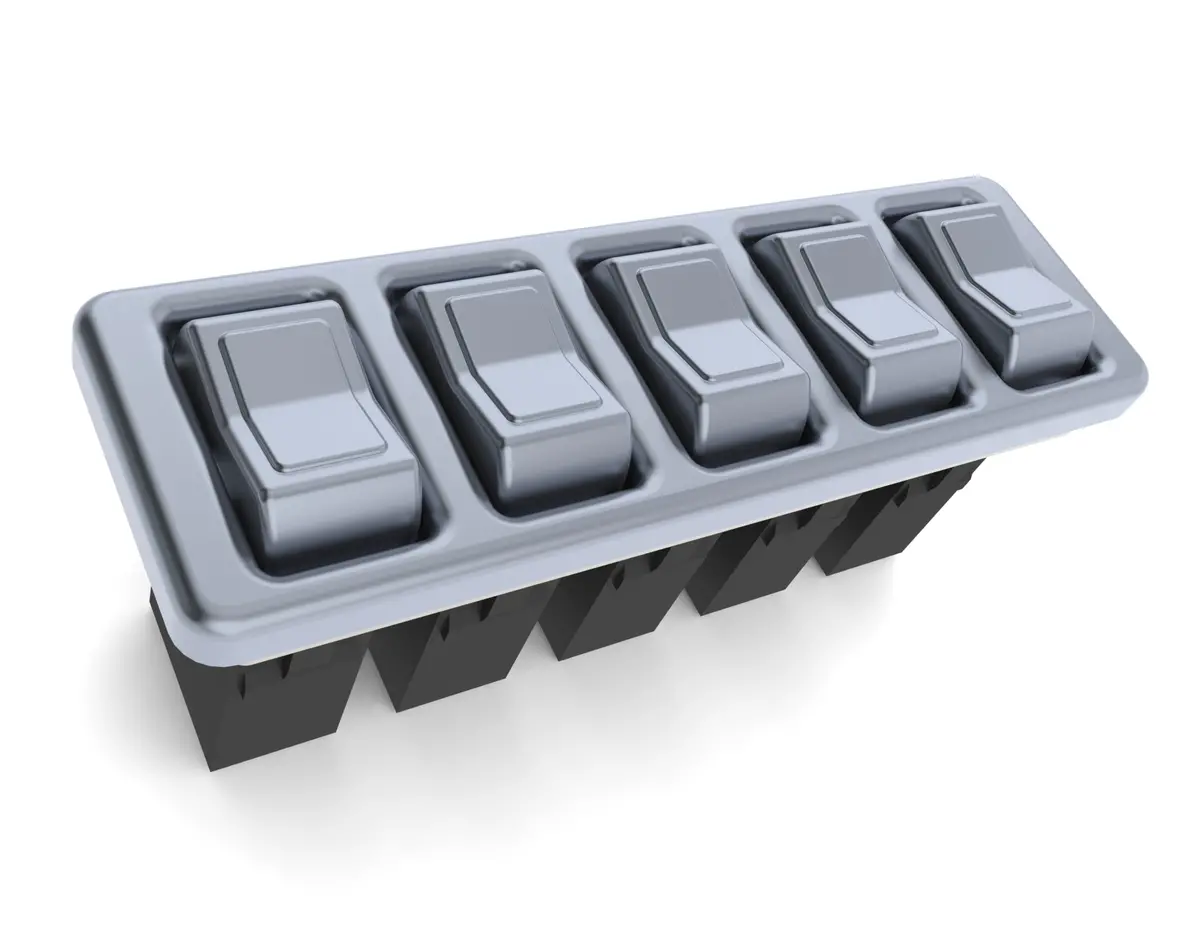

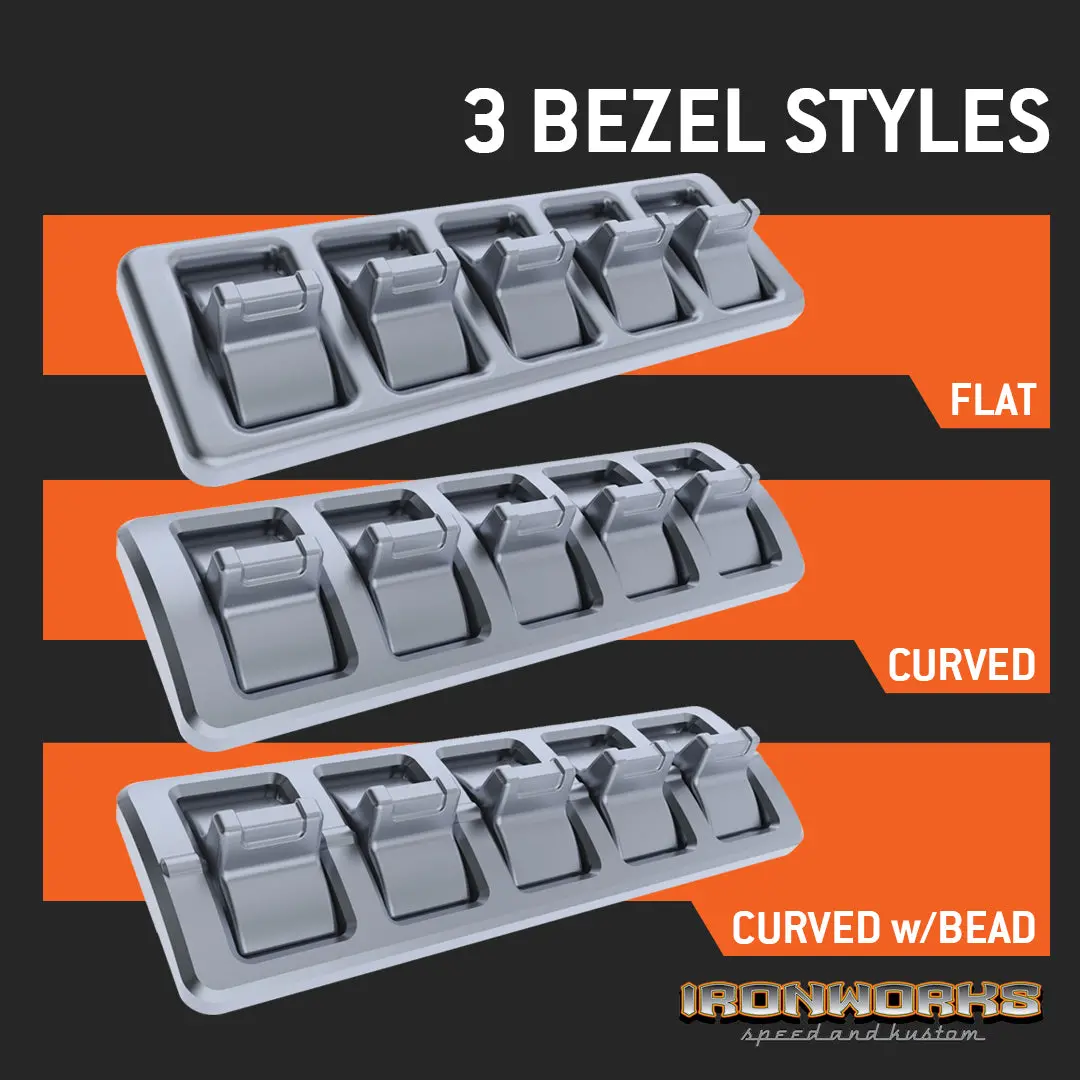

Our thoughtfully designed bezel allows for a tighter package and a clean installation.
Available Functions:
-
Power Window: Ensure smooth operation with momentary-on/off functionality.
-
Headlight: Easily switch between off, low, and high beams.
-
Starter Switch: Dependable momentary-on switch for engine starts.
-
Universal: Simple and effective off-on control for various applications.
Power window switch – Pin Out
Pin 1 – Jumper wire also connected to Pin 6
Pin 2 – To ground
Pin 3 – Negative side of Power window motor
Pin 4 – Jumper wire also connected to Pin 3
Pin 5 – Fused Power circuit
Pin 6 – Positive side of Power window motor
Pin 7 – LED light – to ground
Pin 8 – LED light – from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
Headlight switch – Pin Out
Pin 2 – Fused Power for Parking lights
Pin 3 – To Parking lights or Parking light relay
Pin 5 – Fused Power for headlights
Pin 6 – To Headlights or Headlight relay
Pin 7 – LED light – to ground
Pin 8 – LED light – from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
On-Off switch – Pin Out
Pin 2 – To part for switched power
Pin 3 – Fused power for switched
Pin 7 – LED Light – to ground
Pin 8 – LED Light – from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
