Msd 6Al-2 Digital Ignition Control Box (Black) 64213

Description

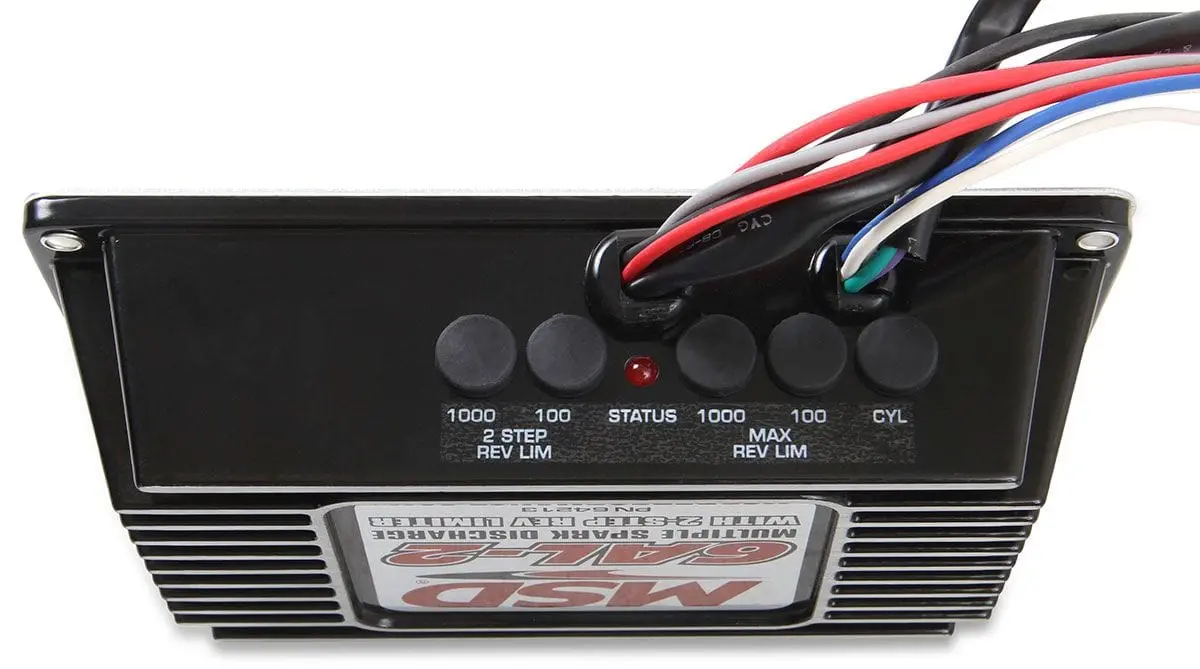

6AL-2 Ignition Control – Black

Digital Capacitive Discharge with Rev-Limiter

MSD64213

D64213

All new housing, digital circuits and performanceBuilt-in 2-Step rev control with rotary dialsHigher output with up to 135mJ and 535 voltsAccepts Hall-effect, points and mag pickup triggersManaged by an efficient digital controlMSD is excited to announce the next generation of 6-Series ignition controls – the 6AL-2! The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminium housing you’ll find an advanced micro-controller that manages the timing and rpm of the ignition. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits! There are two rev l imiters; one for high er rev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control! The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.Operating Specifications:Spark Energy : 135 millijoules/SparkPrimary Voltage: 535 VoltsSecondary Voltage: 45,000 VoltsSpark Series Duration: 20 Degrees Crankshaft RotationRPM Range : 12,500 RPM with 14.4 VoltsVoltage Required : 12 – 18 Volts, Negative GroundCurrent Draw: .7 Amp per 1,000 RPMWeight and Size: 3 lbs., 7″L x 4″W x 2″HTested with Blaster HVC II Coil, PN MSD8253
