Mr12Volt Jaguar XF, XFR, XK, XKR – High End Audio MOST Bus CarPlay & AA Interface OEM mic support
Model No: P2000-XF09MM
The brand new Mr12Volt P2000 MM series has just gotten better now with built in DSP and OEM microphone support.
Compatible with the following Jaguar:
Jaguar XF / XFR 2009 – 2011 ( Pre-facelift )
Jaguar XK / XKR 2009 – 2015
IMPORTANT: The P2000 will replace the OEM USB module.

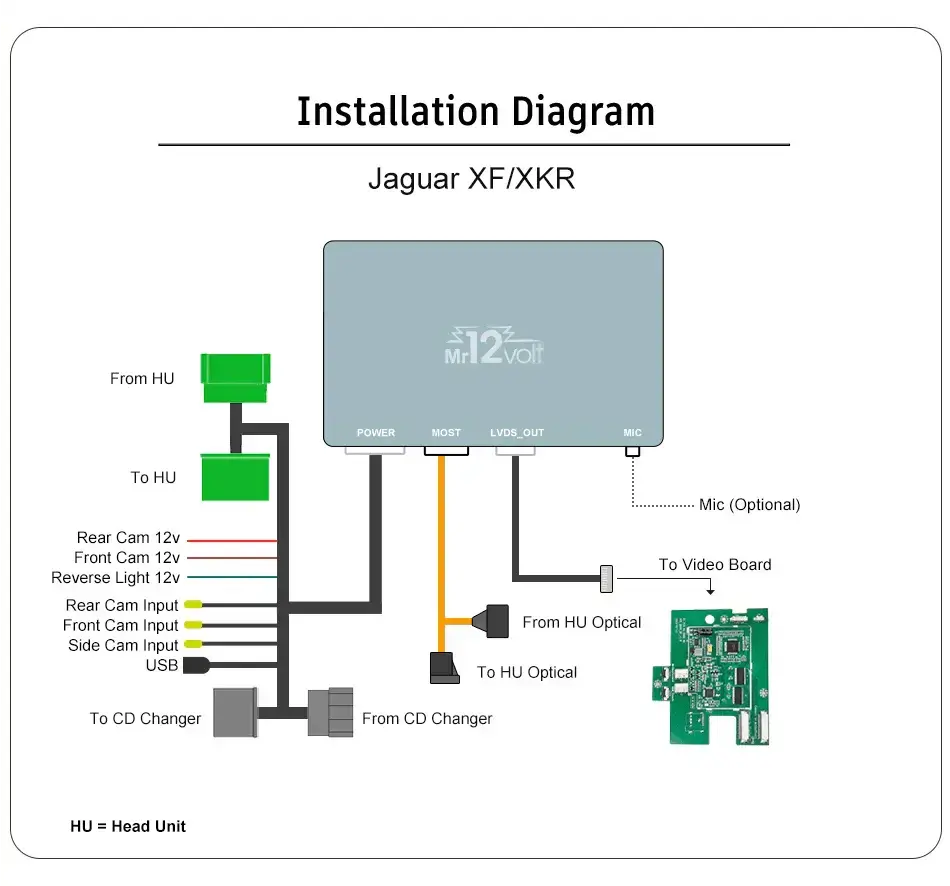

Installation videos:
Highlight Features:
- OEM microphone support
- Runs on MOST BUS with High-End audio quality
- Wireless & Wire Apple CarPlay, Google Android Auto
- Wireless MirrorLink
- Bluetooth Handsfree & Audio Streaming
- USB Video & Music Playback
- Reverse / Front / Left or Right Camera Input
- Supports Apple Lossless Music Streaming
- Highly Customisable 15 Bars DSP Equaliser
How it works
- Mr12volt is selected through Portable Audio > USB features of the head unit
- No coding is needed
- Supports aftermarket cameras up to AHD720
P2000 supported multimedia type (High performance video and audio codec)
- Decoding H.264 (Baseline and Main High Profile, Level 1-4.2) 30fps @1080p
- Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
- Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium andhigh levels. ASP, levels 0-5) 30fps @1080p
- Decoding Real-Video 8/9/10 30fps @1080p
- Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
- Decoding DivX (DivX3/4/5/6) 30fps @1080p
- Decoding H.263 (Profile 0, levels 10-70.) 30fps @720×576
- JPEG codec (Baseline interleaved) 8176×8176
- Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
- Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)
Related Topics:
How to mirror to P2000 from phone
Additional Technical Data:
- Operating Temperature: -20 – +80 degree centigrade
- DAC resolution: 18Bit
- MP3 kbit: 8 – 384kbit
- Voltage: 10 – 14.6V DC
- Operation Current: 450mA (700mA when charging mobile phone)
- S/N ratio: 95dB
- Total Harmonic Distortion: 0.1%
- Frequency Response: 20Hz – 20KHz
