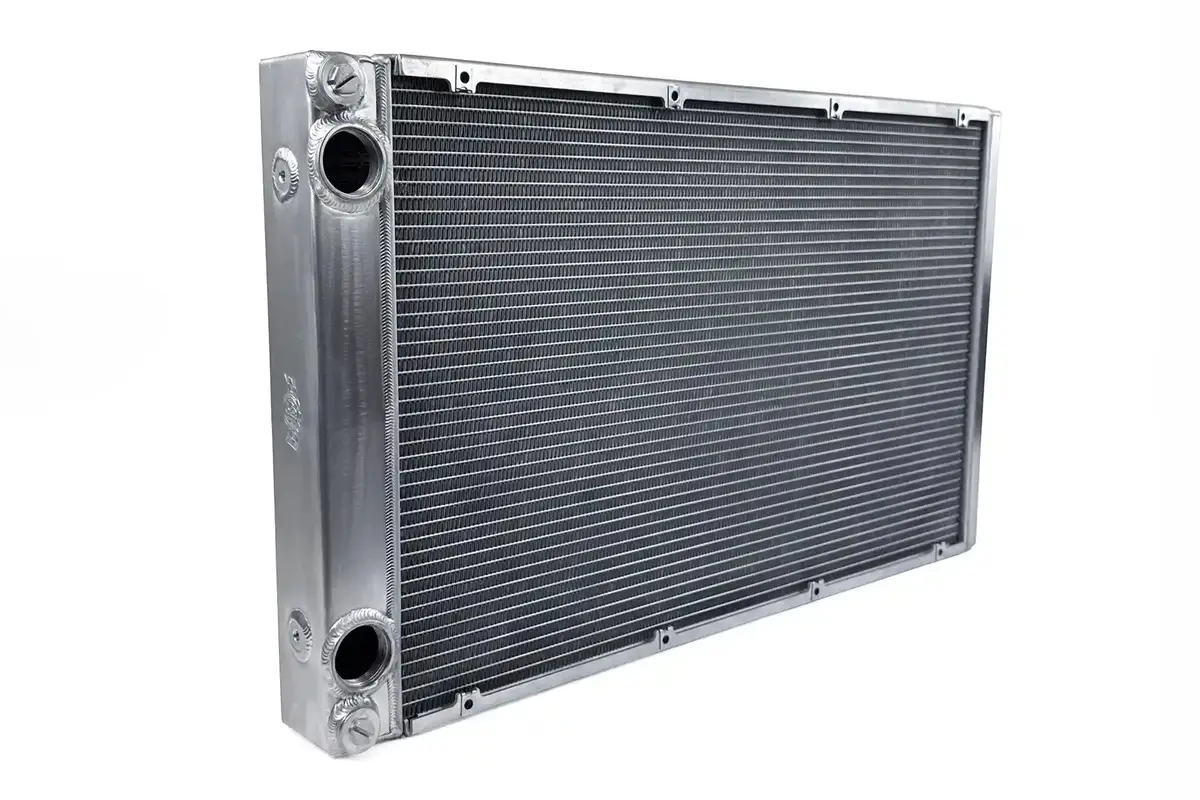

CSF Motorsport Dual-Pass Racing Radiator

Description

Key Features:

• 100% All Aluminum TIG-Welded Construction
• 2-Row – 68mm Ultra-High-Performance Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)
• 45 Rows of 8mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 44 Rows of Cooling Tubes with CSF’s Exclusive B-Tube Technology
• Inlet/Outlet: -20AN (1 5/8″ – 12) Threaded female ORB bosses *Fittings NOT Included
• 8 total M8x1.25 Mounting Bosses (4 per tank) for mounting versatility
• 2 -12AN (1 1/16″-12) ORB ports for sensor mounting, overflow or expansion tank mounting, and/or bleeding *Fittings NOT Included – only plugs
• Hand Brushed Satin Finish
• Individually Leak and Pressure Tested
• Applications:
  • Universal
